Inside Back
PLAIN UPHOLSTERED (STANDARD)
DIAMOND TUFTED
3" - 6" WIDE VERTICAL CHANNELS
BISCUIT TUFTED
6" WIDE HORIZONTAL CHANNELS
PLAIN BACK WITH 4" - 6" WIDE HEADROLL
GRADUATING WIDTH HORIZONTAL CHANNELS
PLAIN BACK WITH 3" WIDE PICTURE FRAME HEADROLL
HIGH RISE CURVED BACK
Seat
PLAIN UPHOLSTERED WITH FRENCH STITCH ON ALL SEAT TOP EDGES (STANDARD)
WATERFALL UPHOLSTERED FRONT AND BACK EDGES WITH FRENCH STITCH ON ENDS
WATERFALL UPHOLSTERED FRONT AND BACK EDGES WITH BASEBALL STITCH ON ENDS
PLAIN UPHOLSTERED WITH BASEBALL STITCH ON ALL SEAT TOP EDGES
PLAIN UPHOLSTERED WITH WELT ON ALL SEAT TOP EDGES
WATERFALL UPHOLSTERED FRONT AND BACK EDGES WITH WELT ON THE ENDS
Seat Apron
FLUSH SEAT UPHOLSTERED APRON WITH WELT (STANDARD)
FLUSH SEAT LAMINATE APRON WITH WELT
FLUSH SEAT WOOD VENEER APRON WITH WELT
RECESSED SEAT APRON
Base & Legs
ENCLOSED BASE SQUARE CORNERS, SQUARE, OR SLANTED PROFILE (STANDARD)
ENCLOSED BASE RADIUS CORNERS
METAL OR WOODEN ROUND LEGS
METAL OR WOODEN SQUARE LEGS
METAL OR WOODEN TAPERED LEGS
A RECESSED BASE CAN BE USED IN CONJUNCTION WITH LEG SUPPORTS FOR ADDITIONAL STABILITY
TEAR SHEETS
Rotunda Tear Sheet
Request Brochure
SYMBOLS
Rotunda CAD
Request Brochure
Rotunda Revit
Request Brochure
SPECIFICATION REQUEST FORM
Seating Specification Request Form
Request Brochure

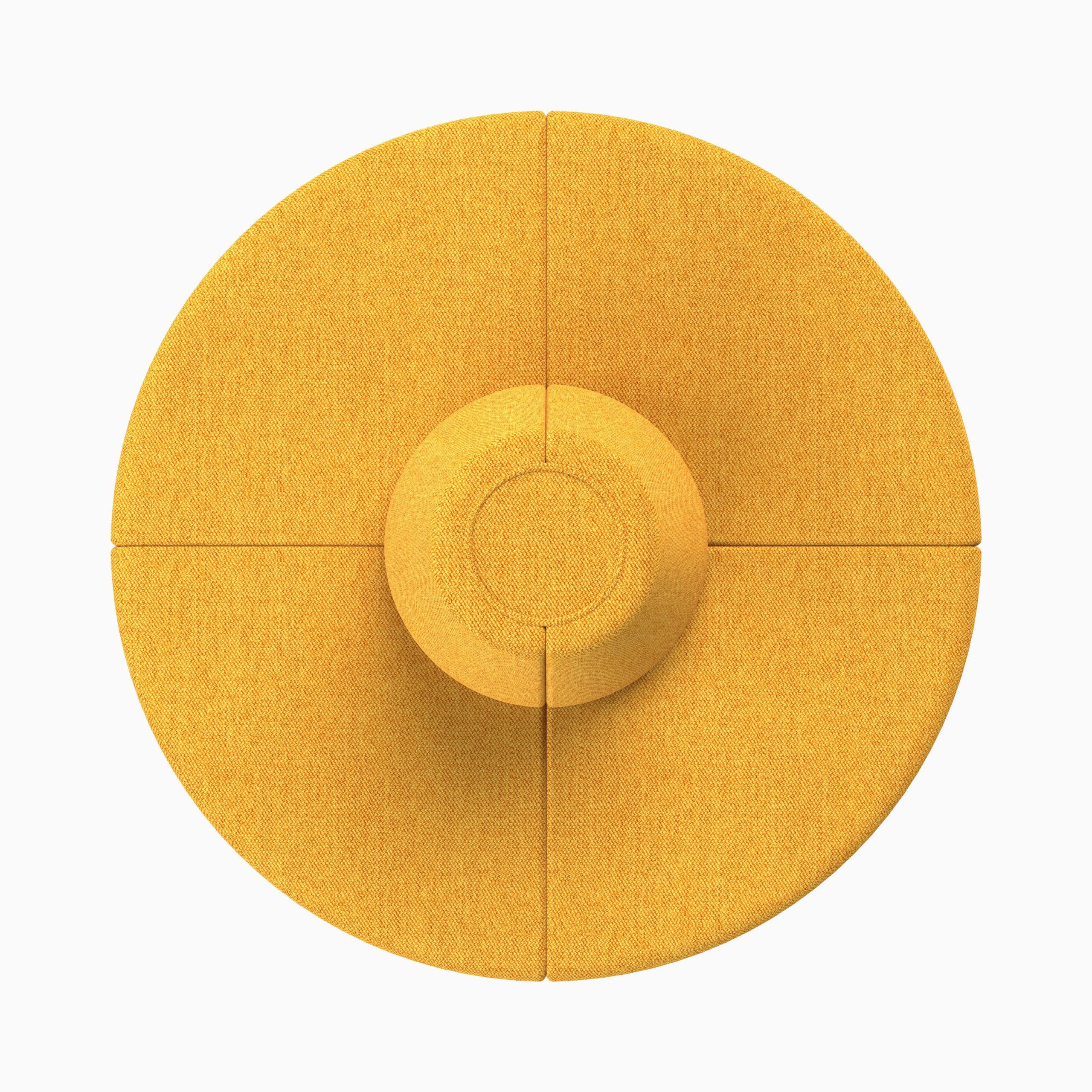

Plan View
ADiameter: Min 5'-0"
BOverall Depth: Min 5'-0"
CSeat Depth: Min 18"
DCenter Diameter: Min 8"

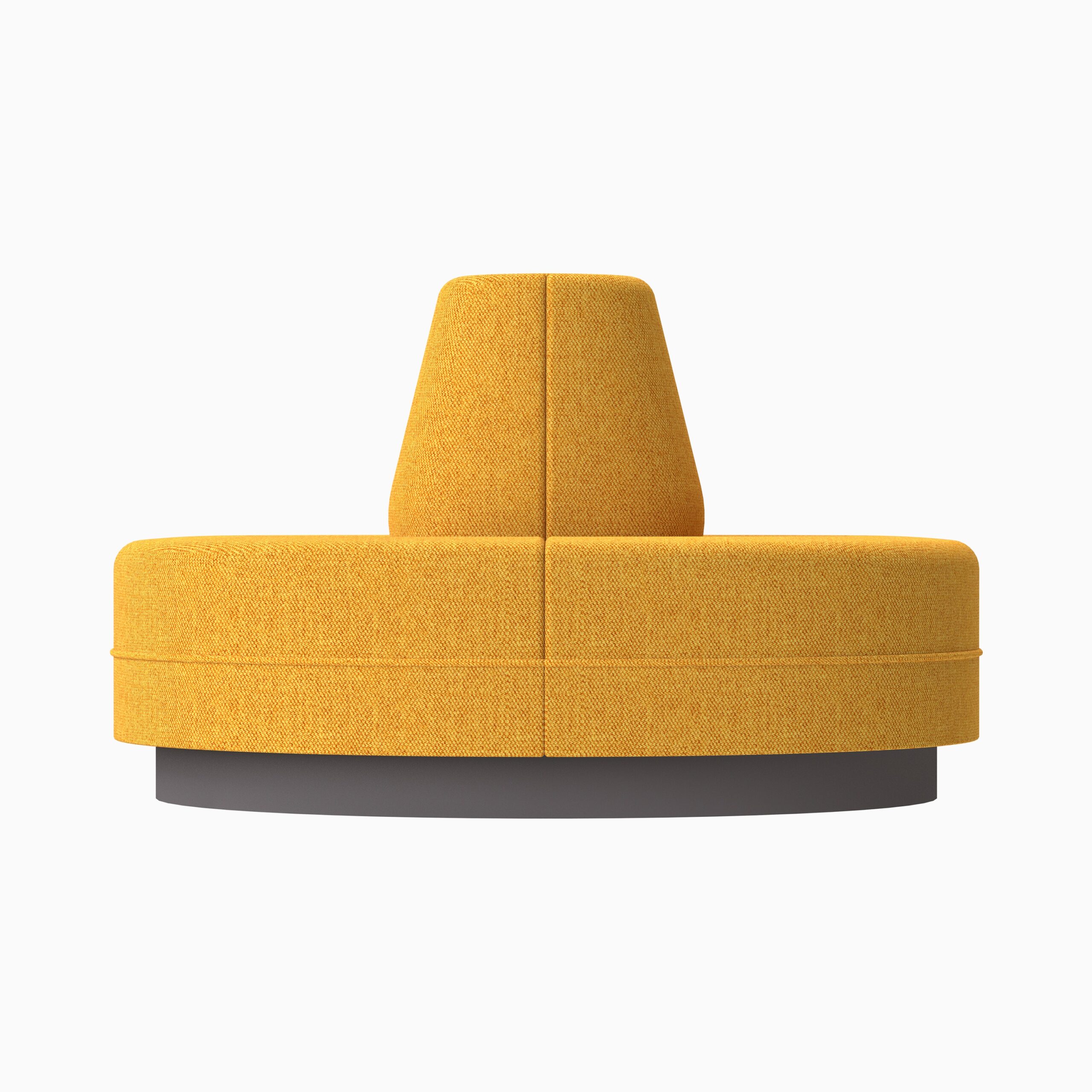

Elevation View
AOverall Height: Min 24"
BInside Back Depth: Min 5"
CSeat Thickness: Min 2"
DApron Height: No min
EBase Height: No min
FOverall Seat Height: Min 17" - 30"
Please Note: Dimensions shown are a guideline and can be tailored to your specific project.
